SEAFOREST 430W Flexible Solar Panel

Product Name: SEAFOREST 340W Flexible Solar Panel

Sea Forest Flexible Solar Panel: Solution for Family or EV Factory Energy Storage Solution: storage Features of Seaforest's flexible solar panels:
1，Lightweight: Optimized composite material, 60% lighter than the same output normal track panel; 430W flexible panel size: 1911*1137*3mm, weight: 7.5KW
2，Flexible：Special manufacturing process and material with bending performance
3，Excellent appearance and performance: Aesthetic design, no flare effect, micro-crack risk "0
4，Easy transportation and installation: Original design saves much cost for transportation and installation
5，Customization：Customizable, high additional value
6，Excellent low light performance：Excellent low irradiance performance, increase power generation in low light conditions such as morning, evening and cloudy days
7，Conventional glass panels weigh around 20-30KG, while flexible solar panels weigh around 5-9KG, making them much lighter. This can solve the load-bearing problem.
8，Curved surface can be installed.
9、Installation is possible not only on roofs, but also on walls, making it possible to install in factories and buildings where installation has been abandoned due to load-bearing problems.
10，This product comes with a 10-year product warranty and a 25-year output warranty.


シーフォレストのフレキシブルソーラーパネル:家庭用蓄電池システムとEV充電システムと工場蓄電池システムのベスト解決案。
特徴：
１，軽量：最適化された複合材料で、同じ出力常軌パネルより60％軽量。430Wのフレキシブルパネルのサイズ：1911*1137*3mm、重量：7.5KW
２，フレキシブル：特別な製造プロセスと材料で、曲げ性能を持っている
３，優れた外観と性能：美学的なデザイン、フレア効果なし、マイクロ亀裂のリスク「0」
４，簡単な輸送と設置：オリジナルのデザインにより、輸送と設置にははるかにコストが節約できる
５，カスタマイズ：カスタマイズできて、高い追加価値
６，優れた低照度パフォーマンス：優れた低放射照度性能、朝、夕方、曇りの日などの低照度条件で発電を増やす
７，従来のガラスパネルの重量は20-30KGぐらいですが、フレキシブルソーラーパネルの重量は5-9KGぐらいで、はるかに軽くなりました。これで耐荷重問題もクリアできます。
８，曲面でも設置可能です。
９，更に屋根上だけでなく、壁面でも設置可能ですので、今まで耐荷重問題で設置を断念されていた工場や建物でも設置できるようになります。
１０，10年の製品保証と25年の出力保証です。

Applicable standards:.

• IEC61215:2016
• IEC61730:2016
• UL1703 (USD）

Flexible Mono Solar Panels’ Features:

• Lightweight:Optimized composite materials, 60% lighter at the same power
•
• Flexible：Special manufacturing process and materials provide bending ability
•
• Excellent Appearance and Performance：Esthetics module design, no flare effect, “0” risk of micro crack
•
• Easy transportation and installation：Original design making it far less costly for transportation and installation
•
• Customization：Customization for various senarios, high additional value
•
• Superior Low Irradiance Performance：Excellent low irradiance performance, increase power generation in low-light conditions like mornings, evenings and cloudy days

SEA FOREST’s Certificates

PV Solar Panels’ Linear Performance Warranty

12 Years Guarantee on product materail and workmanship

25 Years Linear Power output warranty

Specifications

*STC: Irradiance 1000 W/m², AM1.5, Cell Temperature of 25°C

The data above is for reference only and the actual data is in accordance with the pratical testing

Temperature Coefficient

Mechanical characterisrtics

*Cable length can be customized

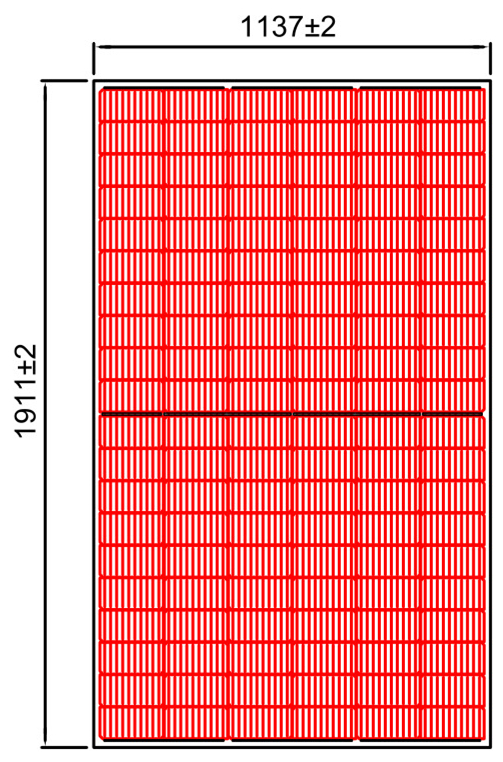

Engineering Drawing （unit：mm）

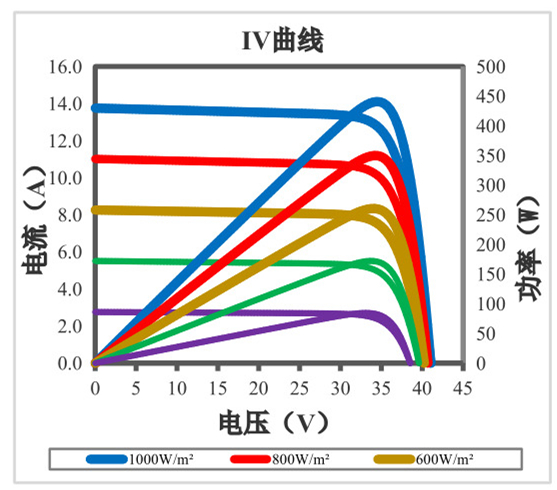

IV Cure

Packaging Configuration

Project

*The specification and key features described in this datasheet may deviate slightly and are not guaranteed. Due to ongoing innovation, R&D enhancement,SEA FOREST reserves the right to make any adjustment to the information described herein at any time without notice. Please always obtain the most recent version of the datasheet which shall be duly incorporated into the binding contract made by the parties governing all transactions related to the purchase and sale of the products described herein.
