210W Flexible Solar Panel

Lightweight:Optimized composite materials, 60% lighter at the same power;Flexible：Special manufacturing process and materials provide bending ability; Excellent Appearance and Performance：Esthetics module design, no flare effect, “0” risk of micro crack; Easy transportation and installation：Original design making it far less costly for transportation and installation; Customization：Customization for various senarios, high additional value; Superior Low Irradiance Performance：Excellent low irradiance performance, increase power generation in low-light conditions like mornings, evenings and cloudy days.

Brand:
SEA FOREST
Item NO.:
210W Flexible
Order(MOQ):
20GP
Payment:
T/T , L/C
Product Origin:
China
Color:
Silver
Shipping Port:
SHANGHAI
Lead Time：
25-35days

Inquiry now

Product Detail

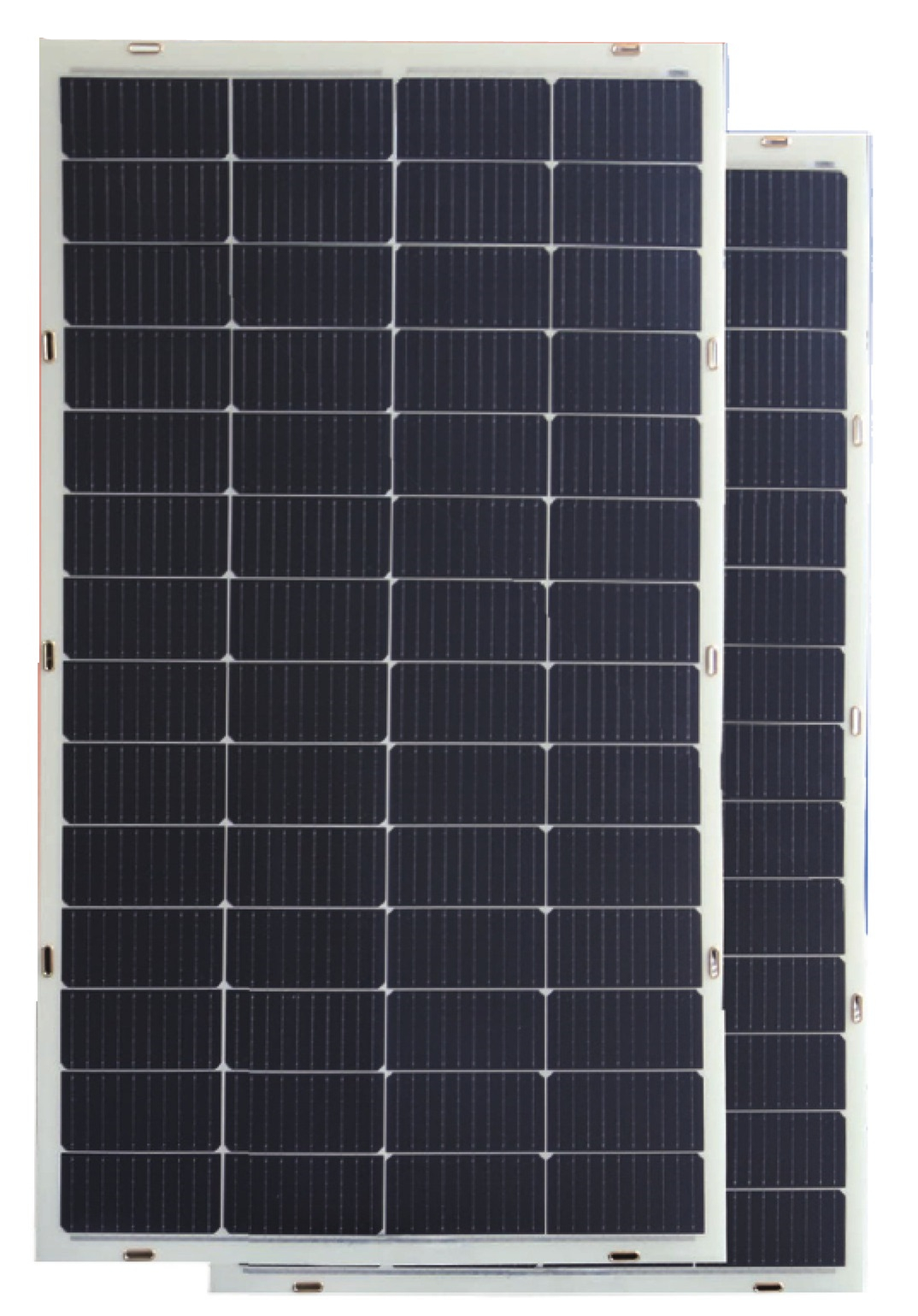

Product Name: 210W Flexible Solar Panel

Applicable standards:.

IEC61215:2016
IEC61730:2016
UL1703 (USD）

Flexible Mono Solar Panels’ Features:

Lightweight:Optimized composite materials, 60% lighter at the same power
Flexible：Special manufacturing process and materials provide bending ability
Excellent Appearance and Performance：Esthetics module design, no flare effect, “0” risk of micro crack
Easy transportation and installation：Original design making it far less costly for transportation and installation
Customization：Customization for various senarios, high additional value
Superior Low Irradiance Performance：Excellent low irradiance performance, increase power generation in low-light conditions like mornings, evenings and cloudy days

SEA FOREST’s Certificates

PV Solar Panels’ Linear Performance Warranty

12 Years Guarantee on product materail and workmanship

25 Years Linear Power output warranty

Specifications

Electrical Properties / STC*
Peak Power(Pmax)	210W
Maximum Power Voltage(Vmp)	16.2V
Maximum Power Current(Imp)	13.1A
Open Circuit Voltage(Voc)	19.4V
Short Circuit Current(Isc)	13.7A
Module Efficiency(%)	19.26%

*STC: Irradiance 1000 W/m², AM1.5, Cell Temperature of 25°C

The data above is for reference only and the actual data is in accordance with the pratical testing

Maximum System Voltage(V)	600V DC
Maximum Series Fuse Rating(A)	15A
Power Tolerance	0～+5W
Operating and Storage Temperature(℃)	-40～+85

Temperature Coefficient

Pmax Temperature Coefficients(W/℃)	-0.380%
Voc Temperature Coefficients(V/℃)	-0.280%
Isc Temperature Coefficients(A/℃)	+0.020%
NOCT Nominal Operating Cell Temperature(℃)	41±2

Mechanical characterisrtics

Cell Type	182mm Mono
No. of Cells	56
Dimensions	13807903
Weight	3.4kg
Frame	Frameless
Backsheet	white
Junction box	IP67
Output cables*	4mm² cable
Connector	MC4 Compatible

*Cable length can be customized

Engineering Drawing （unit：mm）

IV Cure

Packaging Configuration

Packing Type	20'GP	40'HQ
Pallet/Container	70	70
Piece/Container	980	2100

Project

*The specification and key features described in this datasheet may deviate slightly and are not guaranteed. Due to ongoing innovation, R&D enhancement,SEA FOREST reserves the right to make any adjustment to the information described herein at any time without notice. Please always obtain the most recent version of the datasheet which shall be duly incorporated into the binding contract made by the parties governing all transactions related to the purchase and sale of the products described herein.
